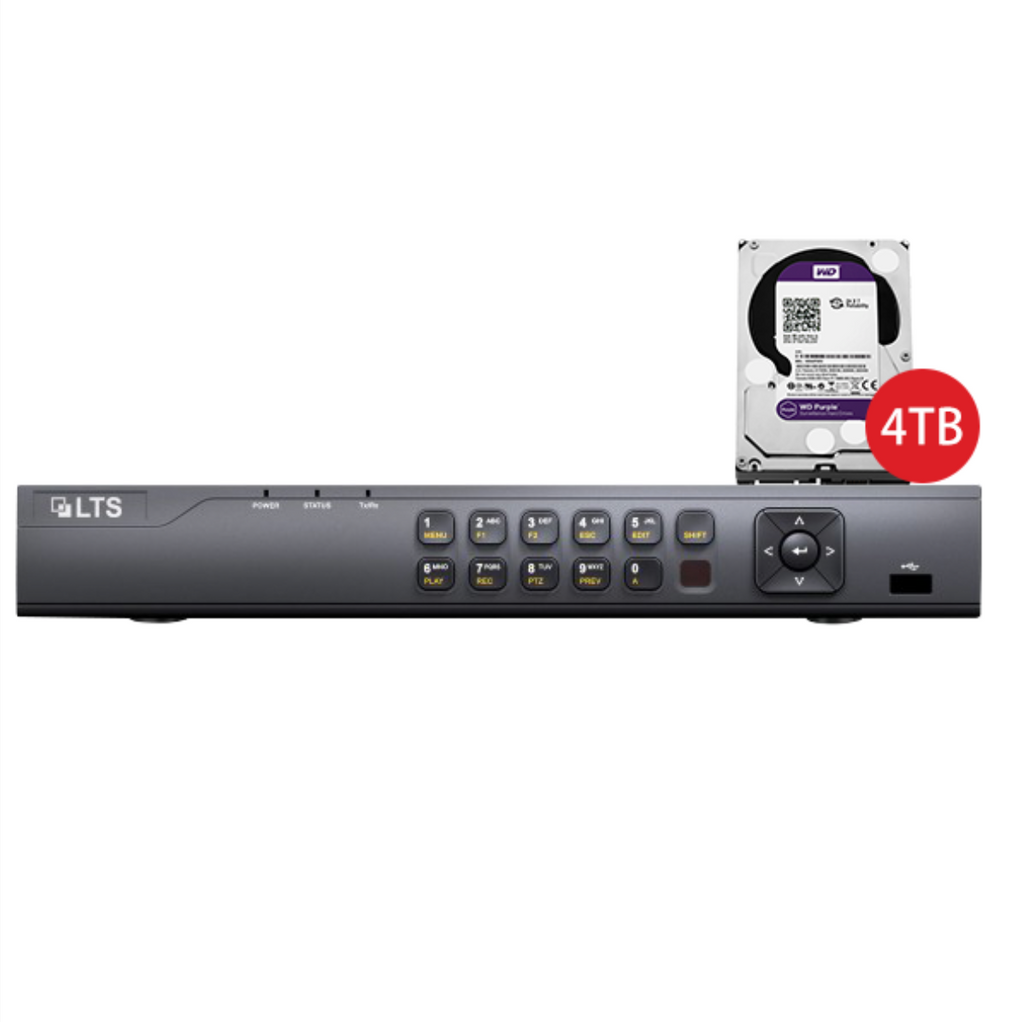

Platinum Professional Level 16 Channel NVR, 16 PoE Ports, 1U, SATA up to 12TB, 4TB Pre-Installed Storage

Save $150.00

Price:
Sale price$549.00 Regular price$699.00

Description

Video/Audio Input
IP Video Input 16CH
Two Way Audio Input 1- ch, RCA (2.0 Vp- p, 1kΩ)
Incoming Bandwidth 160Mbps
Outgoing Bandwidth 80Mbps
Video/Audio Output
Recording Resolution 8MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
HDMI Output

4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 ×1200/60Hz, 1280 × 1024/60 Hz,
1280 × 720/60Hz, 1024 × 768/ 60Hz

VGA Output 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Video Output 1- ch, RCA (Linear, 1kΩ)
Decoding H.265/H.265+/H.264/H.264 Zip+/MPEG4
Recording Resolution 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
Synchronous Playback 4CH
Capability 1-ch @ 8 MP / 4-ch @ 1080P
Hard Disk
SATA 2 SATA interfaces for 2 HDDs
Capacity Up to 6TB capacity for each disk
External Interface
Network Interface 1 RJ-45 10 /100 /1000 Mbps self-adaptive Ethernet interface
Network Protocols TCP/IP, DHCP, PT CLOUD, DNS, DDNS, NTP, IP Portal, SMTP, NFS, iSCSI, UPnP™ , HTTPS
USB Port 2 × USB 2.0
General
Power Supply 100~240V AC
Consumption ≤ 15W (without enabling PoE)
Working Temperature 14°F - 131°F(-10 °C ~ +55 °C)
Working Humidity 10% - 90%
Chassis 1U Casing
Dimension 380 ×315× 52mm (15.0×12.4 × 2.0 inch)
Weight ≤ 3kg (6.6 lb)
