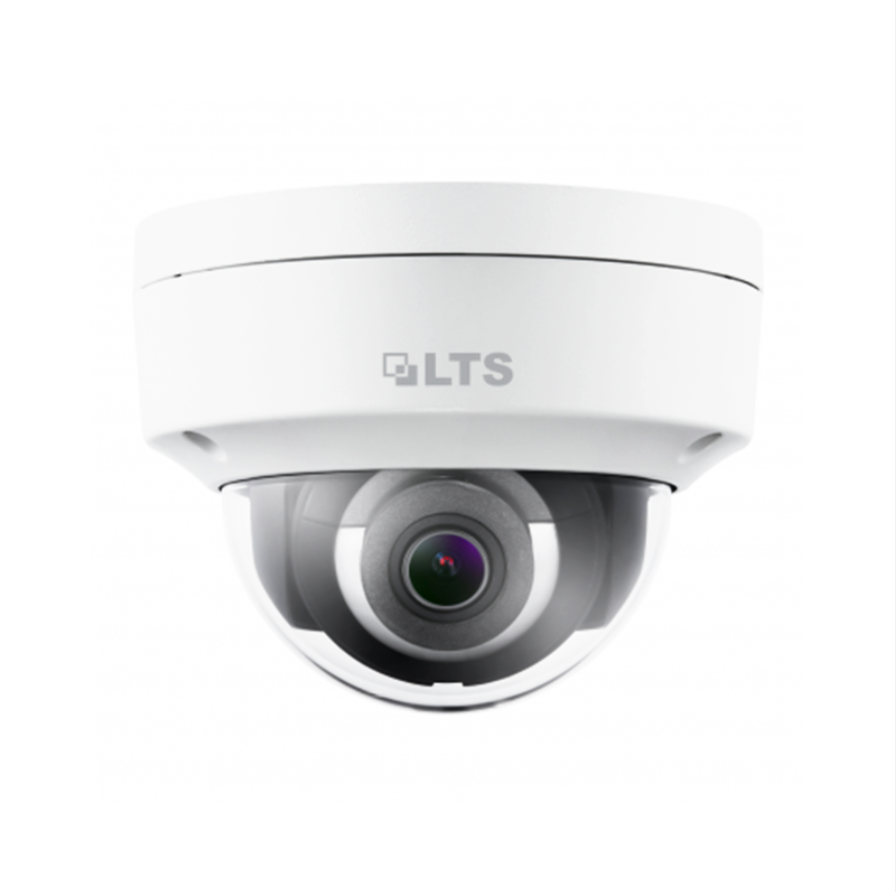

Platinum Network Vandal Dome IP Camera, 4MP, 2.8mm, True WDR, SD card slot

Save $20.00

Price:
Sale price$139.00 Regular price$159.00

Description

Camera



Image Sensor

1/3" Progres s ive S can CMOS

Min. Illumination

0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR

Shutter Speed

1/3 s to 1/10,000 s

Lens

2.8 mm: horizontal FOV:98°, vertical FOV: 55°, diagonal FOV: 114°

Lens Mount

M12

Day & Night

IR cut filter

DNR

3D DNR

Wide Dynamic Range

120dB

Angle Adjustment

Pan:0° ~ 360°, T ilt: 0° ~ 75°, Rotation: 0° ~ 360°

Compression Standard



Video Compression

Main stream: H.265+/H.265/H.264 Zip+/H.264

Sub stream: H.265+/H.265/H.264 Zip+/H.264/MJPEG

Third stream: H.265+/H.265/H.264 Zip+/H.264

H.264 / H.264+ Type

Main / High Profile

H.265 / H.265+ Type

Main Profile / Sub-stream support

Video Bit Rate

32 Kbps ~ 16 Mbps

Dual Stream

Support




Max. Resolution

2560 × 1440

Main Stream

50Hz:25fps (2560×1440,2304×1296,1920×1080) 60Hz: 30fps (2560×1440,2304×1296,1920×1080)

Sub Stream

50Hz: 25fps (640 × 360, 352 × 288)60Hz: 30fps (640 × 360, 352 × 240)

Third Stream

50Hz: 25fps (1280×720, 640×360, 352×288)  60Hz: 30fps (1280×720, 640×360, 352×240)

Others

Support rotate mode. Brightness, contrast, saturation, and sharpness are adjustable via web browser and client software

Behavioral Analysis

Line crossing detection, intrusion detection

Network



Network Storage

Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR

Alarm Trigger

Motion Detection, VideoTampering, Network Disconnected, IP Address Conflicted, Illegal Login, HDD Full, HDD error

Protocols

TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6

General

One-key Reset, Anti-Flicker, Heartbeat, Mirror, Password Protection, Privacy Mask, Watermark, IP Address Filter

Standard

ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI

Interface



Communication Interface

1 RJ45 10M/100M self-adaptive Ethernet port

Reset

Built-in microSD/SDHC/SDXC slot, up to 128 GB

SVC

H.264 and H.265 encoding

General



Working Temperature

-22 °F ~+140 °F(-30 °C ~ +60 °C ) Humidity 95% or less (non-condensing)

/Humidity

Power Supply

DC 12V ± 25%,PoE(802.3af)

Power Consumption

Max.6W

IR Range

Up to 100ft(30m)

Weather Proof Ratings

IP67

Impact Protection

IK10

Dimensions

Φ4.4″ × 3.2″ (Φ111 × 82.4 mm)

Weight

1.3lbs (610g)
