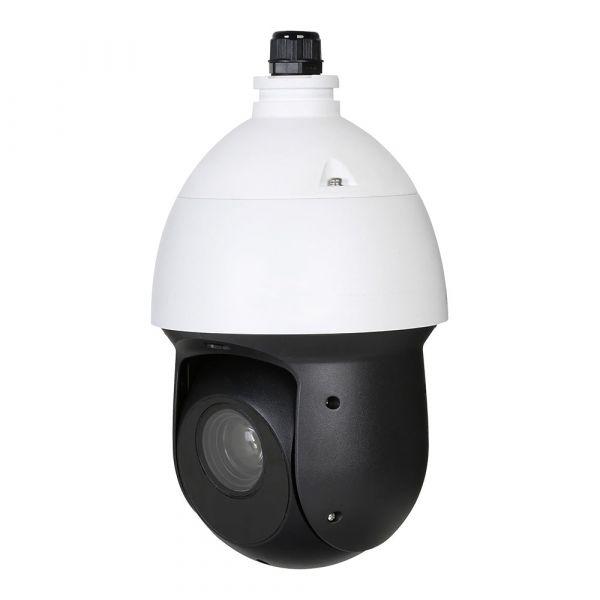

DAHUA OEM - PRO AI PTZ, 1/ 2.8", 4MP@30fps, 25X(4.8-120mm), IR(328ft), True WDR, Starlight, VCA, FD, Auto Tracking, PP, SMD+, Audio/ Alarm, SD Slot

Save $510.00

Sale price$989.00 Regular price$1,499.00



  • 1/2.8" 4Megapixel CMOS
  • Powerful 25x optical zoom
  • Starlight technology
  • Max.25/30fps@4M
  • Deep-learning-based auto-tracking and perimeter protection
  • Support PoE+
  • SMD Plus
  • IR distance up to 100m
  • IP66
  • Auto Tracking


mage Sensor 1/2.8" STARVISTM CMOS
Image Size 2560 (H) × 1440 (V)
Electronic Shutter 1/1s~1/30,000s
Minimum Illumination

Color: 0.005Lux@F1.6
B/W: 0.0005Lux@F1.6
0Lux@F1.6 (IR light on)

Day / Night Auto(ICR) / Color / B/W
BLC Mode Support
White Balance Auto, ATW, Indoor, Outdoor, Manual
Gain Control Auto / Manual
Digital Noise Reduction Ultra DNR (2D/3D)
Privacy Masking Up to 24 areas, and up to 8 areas in the same view
Optical Zoom 25x
Digital Zoom 16x
Electronic Image Stabilization (EIS) Support
Defog Support
Wide Dynamic Range WDR(120dB)
DORI Distance
Detect Observe Recognize Identify

2540 m
(8333.33 ft)

1016 m
(3333.33 ft)

508 m
(1666.67 ft)

254 m
(833.33 ft)

Focal Length 4.8 mm–120 mm
Max. Aperture F1.6–F4.0
Focus Control Auto/Semi-Auto/Manual
Angle of View H: 60.0°–2.5°; V: 30.8°–2.2°; D: 66.7°–2.9°
Close Focus Distance 0.1 m–1.5 m (0.33 ft–4.92 ft)
IR Distance 100 m (328.08 ft)
IR On/Off Control Zoom Prio/Manual/SmartIR
Pan Range Pan: 0° ~ 360° endless; auto flip 180°
Pan Speed Pan: 0.1° ~200° /s;
Tilt Range Tilt: -15° ~ 90°
Tilt Speed Tilt: 0.1° ~120° /s
Number of Preset 300
PTZ Mode 5 Pattern, 8 Tour(up to 32 preset per tour), Auto Pan, 5 Auto Scan
Speed Setup Human-oriented focal Length/ speed adaptation
Power Up Action Auto restore to previous PTZ and lens status after power failure
Idle Motion Preset/Tour/Pattern/Scanning
Time Task Auto activation of Preset / Pan / Scan / Tour / Pattern by preset-time
Video Compression H.265+/H.265/H.264+/H.264/MJPEG(Sub Stream)
Video Resolution

4M (2560 x 1440); 3M (2048 x 1536); 1080P (1920 x1080); 1.3M (1280 x 960); 720P (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)

Video Frame Rate

Main stream: 4MP/3MP/1080P/1.3MP/720P (1–25fps)
Sub stream 1: D1/CIF (1–25fps)
Sub stream 2: 1080P/1.3M/720P (1–25fps)

Video Bitrate

H.265/H.264: 3 kbps–20480 kbps

Smart Tracking Auto Tracking, Support human, motor vehicle and non-motor vehicle image capture.
AI Perimeter Protection Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc.
Tracking Trigger Mode Object Abandoned/Missing
Tracking Trigger Event Motion detection, Video tampering, Scene changing, Network disconnection, IP address conflict, Illegal Access, Storage anomaly
Audio Compression G.711a/G.711mu/PCM/G.726/AAC/G722.1/G.729/ MPEG2-Layer2
Audio In 1CH
Audio Out 1CH
Alarm In 2CH
Alarm Out 1CH
Ethernet RJ-45 (10Base-T/100Base-TX)
Network Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP,ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, RTCP,
Network Interoperability ONVIF Profile S&G, API
Streaming Method Unicast / Multicast
Network Max. Users 19 users
Storage NAS (Network Attached Storage),Local PC for instant recording
Storage Card Micro SD card 256GB
Web Viewer IE, Chrome, Firefox, Safari
Management Software Smart PSS, DSS, DMSS
Mobile iPhone, Android
Certifications CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpartB,ANSI C63.4- 2014
UL: UL60950-1+CAN/CSA C22.2,No.60950-1
Power Supply DC 12V/3A PoE+ (802.3at)
Power Consumption 13W 21W (IR on)
Operating Temperature -40°C ~ 70°C (-40°F ~ +158°F) / Less than 95% RH
Ingress Protection IP66; TVS 6000V lightning proof; Surge protection
Dimensions Φ160 mm × 295 mm (6.30" × 11.61")
Weight Net Weight 3 kg (6.61 lb) Gross Weight 4.8kg (10.58lb)
