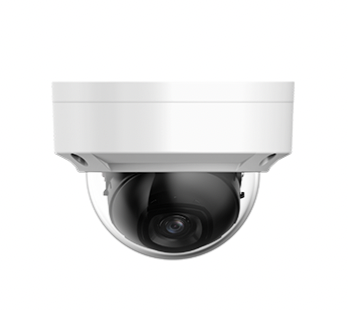

LTDHIP7682NW-28M, 8MP IP Starlight Dome 1/2.7”2.8mm ** BUY 2 GET 1 FREE **

Save $50.00

Price:
Sale price$249.00 Regular price$299.00

Description

  • 8MP, 1/2.7" CMOS image sensor, low illuminance, high image definition

  • ·  Outputs max. 8MP (3840 × 2160) @15 fps, and supports 2688×1520

    (2688 × 1520) @25/30 fps

  • ·  H.265 codec, high compression rate, ultra-low bit rate

  • ·  Built-in IR LED, max IR distance: 30 m

  • ·  ROI, SMART H.264/H.265, flexible coding, applicable to various

    bandwidth and storage environments

  • ·  Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking,

    applicable to various monitoring scenes

  • ·  Intelligent detection: Intrusion, tripwire

  • ·  Abnormality detection: Motion detection, video tampering, no SD card,

    SD card full, SD card error, network disconnection, IP conflict, illegal

access, voltage detection

  • ·  Supports max. 256 GB Micro SD card

  • ·  12V DC/PoE power support

  • ·  IP67, IK10 protection

page1image1881345888

Lite Series

page2image1973016272

Technical Specification

Camera

Image Sensor

1/2.7” 8Megapixel progressive CMOS

Effective Pixels

3840 (H) × 2160 (V)

ROM

128 MB

RAM

256 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.009 Lux@F2.0

IR Distance

30 m (98.43 ft)

IR On/Off Control

Auto/Manual

IR LEDs Number

3

Pan/Tilt/Rotation Range

Pan: 0°–355°
Tilt: 0°–65° Rotation: 0°–355°

Lens

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

2.8 mm 3.6 mm

Max. Aperture

F2.0 F2.0

Field of View

2.8 mm: Pan 105° × Tilt 56° × Diagonal 125° 3.6 mm: Pan 87° × Tilt 47° × Diagonal 104°

Iris Type

Fixed

Close Focus Distance

2.8 mm: 1.0 m (3.3 ft) 3.6 mm: 1.9 m (6.2 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8mm

74.7 m (245.1 ft)

29.9 m 14.9 m 7.5 m (98.1 ft) (48.9 ft) (24.6 ft)

3.6mm

106.7 m 42.7 m 21.3 m 10.7 m (350.1 ft) (140.1 ft) (69.6 ft) (35.1 ft)

Smart Event

General IVS Analytics

Tripwire; intrusion

Video

Video Compression

H.265; H.264; H.264B; MJPEG

Smart Codec

Yes

Video Frame Rate

Main stream:
3840 × 2160 (1 fps–15 fps) 2688 × 1520 (1 fps–25/30 fps) Sub stream:
704 × 576 (1 fps–25 fps)
704 × 480 (1 fps–30 fps)

Stream Capability

2 streams

Resolution

3840 × 2160 (3840 × 2160); 3072 × 2048 (3072 × 2048); 3072 ×1728 (3072 × 1728); 2592 × 1944 (2592 × 1944); 2688 × 1520 (2688 × 1520); 3M (2048 × 1536); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 32 Kbps–8192 Kbps H.265: 12 Kbps–8192 Kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

White Balance

Auto/natural/street lamp/outdoor/manual/regional custom

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest(RoI)

Yes (4 areas)

Smart IR

Yes

Image Rotation

0°/90°/180°/270° (Supports 90°/270° with 2688 × 1520 resolution and lower.)

Mirror

Yes

Privacy Masking

4 areas

Network

Network

RJ-45 (10/100 Base-T)

Protocol

IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; Bonjour

Interoperability

ONVIF(Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec

User/Host

20

Edge Storage

LTS Cloud; FTP; SFTP; Micro SD Card (support max. 256 GB); NAS

Browser

IE Chrome Firefox

Management Software

Smart PSS; DSS; DMSS

Mobile Phone

IOS; Android

Certification

Certifications

CE-LVD: EN60950-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Power

Power Supply

12V DC/PoE (802.3af)

Power Consumption

< 6.2W

page3image1972529760

Environment

Power Consumption

–40°C to +60°C (–40°F to +140°F)/less than ≤ 95% RH

Storage Temperature

–40°C to +60°C (–40°F to +140°F)

Protection Grade

IP67; IK10

Structure

Casing

Metal

Dimensions

81 mm × Φ109.9 mm (3.19" × Φ4.33")

Net Weight

0.350 kg (0.77 lb)

Gross Weight

0.491 kg (1.08 lb)

Junction Mount

Wall Mount

PFA136

PFB203W

page3image1806441936 page3image1806442128
page3image1806442992

Ordering Information

Type

Part Number

Description

LTDHIP7682NW-28M

8MP Lite IR Fixed-focal Dome Network Camera,PAL

8MP Camera

8MP ILite IR Fixed-focal Dome

LTDHIP7682NW-36M

Network Camera,NTSC

Accessories

page3image1806190256

Optional:

PFA136 PFB203W Junction Box Wall Mount

page3image1806197984 page3image1806198416
